MultiSUB Midi 96

MultiSUB Midi 96

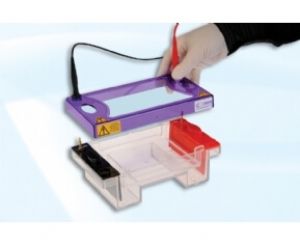

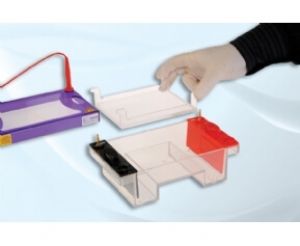

Product Description The MultiSUB Midi 96 Gel System is ideal for high throughput electrophoresis of PCR products or samples containing a small number of DNA bands. Its 10x12cm (W x L) gel dimensions and 96-well comb block format correspond to the standard microplate configuration. Two different types of comb are available; one with 8 wells and one additional lane for DNA markers, and one with 8 wells and 2 additional lanes for markers. The offset layout of the wells allows a maximum run length of 1.8cm per well, resulting in improved separation. The MultiSUB Midi 96 can accommodate samples from a 96-well plate and samples can be loaded directly using 8-channel pipettes. As with all MultiSUB units, the leak-proof casting is simplified using the supplied casting dams, while their ultra-compact size minimises buffer usage and bench space requirements. MSMIDI96ST Stretch Systems are also available for those users requiring an extended run length per well of up to 3.6cm, or for loading of samples from two 96-well plates – MSMIDI96STDBL. Variants: MSMIDI96 - Multi Sub Midi96, UV tray, Comb block with 12 x 8 sample, 1mm thick combs, casting dams MSMIDI961.5 - Multi Sub Midi96, UV tray, Comb block with 12 x 8 sample, 1.5mm thick combs, casting dams. Combs have one marker lane MSMIDI96/2M - Multi Sub Midi96, UV tray, Comb block with 12 x 8 sample, 1mm thick combs, casting dams. Combs have two marker lanes MSMIDI96/1.5/2M - Multi Sub Midi96, UV tray, Comb block with 12 x 8 sample, 1.5mm thick combs, casting dams. Combs have two marker lanes MSMIDI96ST - Multi Sub Midi96 STRETCH, UV tray, Comb block with 12 x 8 sample, 1mm thick combs, casting dams MSMIDI96ST1.5 - Multi Sub Midi96 STRETCH, UV tray, Comb block with 12 x 8 sample, 1.5mm thick combs, casting dams. Combs have one marker lane MSMIDI96ST/2M - Multi Sub Midi96 STRETCH, UV tray, Comb block with 12 x 8 sample, 1mm thick combs, casting dams. Combs have two marker lanes MSMIDI96ST/1.5/2M - Multi Sub Midi96 STRETCH, UV tray , Comb block with 12 x 8 sample, 1.5mm thick combs, casting dams. Combs have two marker lanes MSMIDI96STDBL - Multi Sub Midi96 STRETCH, UV tray, Comb block with 24 x 8 sample, 1mm thick combs, casting dams – N.B. run length = 1.8cm.
