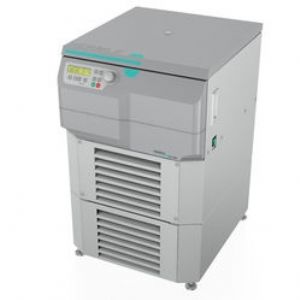

The ZK 496 is a large volume floor-standing centrifuge, which is also available as a space - saving underbench model. Both models are provided with a powerful cooling system to keep your samples cool.
Its huge volume of charge allows a large number of samples to be centrifuged, up to 4 x 1000 ml. The field of application of the ZK 496 ranges from clinical applications through research to industrial applications, but also in blood banks, where blood bags are used.
In additional to the multifunctional swing out rotor, high-speed fixed angle rotors with a maximum capacity of 6 x 250 ml or 4 x 500 ml are also available! This enables a fast and efficient separation of samples in high-throughput laboratories.
• max. Speed: 10,500 rpm
• max. RCF: 16,022 xg
• max. Volume: 4 x 1,000 ml
• Speed range: 10-10,500 rpm
• Temperature range: -20°C - 40°C
• Running time: 59 min 50 s / 10 s increments, 99 h 59 min / 1 min increments
• Dimensions (WxHxD): Floor-Standing unit 62 cm x 98 cm x 69 cm
Underbench unit 62 cm x 70 cm x 69 cm
• Weight: 190 kg / 157 kg
These high-volume centrifuges Z 446 and Z 446 K achieve a throughput of 68 x 15 ml conical tubes or 28 x 50 ml conical tubes at a max.RCF of 3434/4346 xg.
If higher speeds are required, we also offer e.g. an angle rotor with a max. RCF of 14532/16022 xg for 10 x 50 ml.
The fixed-angle and swing-out rotors are suitable for almost all aplications in everyday use in clinical, industrial and research laboratories.
• max. Speed: 16000 rpm
• max. RCF: 24325 xg
• max. Volume: 4 x 750 ml
• Speed range: 200 - 16000 rpm
• Running time: 59 min 50 s / 10 s increments, 99 h 59 min / 1 min increments
• Dimensions (WxHxD): 54 cm x 39 cm x 67 cm
• Weight: 79 kg
These high-volume centrifuges Z 446 and Z 446 K achieve a throughput of 68 x 15 ml conical tubes or 28 x 50 ml conical tubes at a max.RCF of 3434/4346 xg.
If higher speeds are required, we also offer e.g. an angle rotor with a max. RCF of 14532/16022 xg for 10 x 50 ml.
The fixed-angle and swing-out rotors are suitable for almost all aplications in everyday use in clinical, industrial and research laboratories.
• max. Speed: 16000 rpm
• max. RCF: 26328 xg
• max. Volume: 4 x 750 ml
• Speed range: 200 - 16000 rpm
• Temperature range: -20°C bis 40°C
• Running time: 59 min 50 s / 10 s increments, 99 h 59 min / 1 min increments
• Dimensions (WxHxD): 73 cm x 39 cm x 67 cm
• Weight: 111 kg
